LCD Display Prepaid Metering System with Contactless RF Card Prepaid Energy Meters

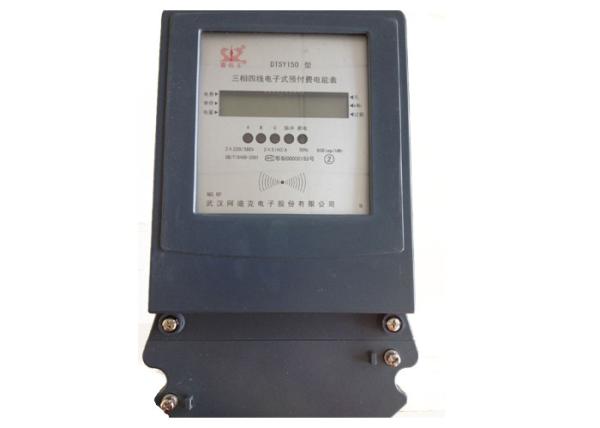

DTSY150D three phase electric meter is worked by contactless type RF card which means the purchased credit is access into the meter through contact-less RF card, the unit price of kWh can be set in card, and the meter will deduct the credit based on each 0.01kWh, when the tariff is changed, the management system will reset the card to change the unit price of the meter,so that the meter can deduct the credit with the adjustment of the unit price to reduce the consumption of power company.

1. Main Features:

• Active three-phase electric power metering,no subject to adjust in terms of long working;
• Three phase power supply can assure accurate metering in case of cut off in one line (each line of the three-phase & three-line) or two lines(any two line of the three- phase & four-line);
• Indicative function for phase loss or voltage indication;
• The signal will display after it test;
• Each user(meter) responds to a card, well protect from forgery;
• Once the remanining electric power quality is approaching the alarming power quality, the digital tube should be lighted to remind user of timely purchasing;
• One card just for one meter, fake card is completely avoided.
• Automatic power off when overload, also can prevent the error overload when the load restart
• Two alarm grade to remind purchasing electricity.
• The forward and opposite direction active power can be measured accurately
• Compute the amount of electricity normally in the absence of the phase
• Embedded large power latching bi-stable relay is used to cut off power supply directly.(except 1.5(6) A ), low power consumption, high reliability.
• The electricity is not used for 6 days, energy meter send the power cut off signal.
• It has the functions of failure checkup, anti-stealing electric power and meter record.
• The meter has the high stability and reliability. It is no need to adjust & regulate when long term operation. The data can be saved for a long time if the power is cut off.
• Wide working temperature range, low request to working environment

2. Technical parameters:

Introduction：

Wuhan Radarking Electronics Corp. is a modern share enterprises which focusing on the smart Internet of things(IOT) /smart grid energy consumption sensor/intelligent electric safety integrated solution. It established in 2002（former name: Wuhan Radarking Co.,Ltd.）and went public on January 27, 2015 with the stock abbreviation RADARKING and stock number 831722. It owns the independent R&D center and factory which is the key recommended high-tech enterprises in Wuhan city, Hubei Province.

It mainly R&D, manufacture and sell the integrated solution of smart Internet of things(IOT) energy consumption sensor/smart grid energy consumption sensor/energy consumption information acquisition and transmission(Collector, Concentrator, Communication Module), smart electric meter, smart water meter, “RDK” energy Internet of Things(IOT) intelligent energy safety integrated solution, digital campus energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter/All-in-One Card cloud computing total charging management integrated solution, energy consumption monitoring and analysis integrated solution, mobile phone APP(Energy Consumption, Fast E Top Up).

Principle:

It pursues “Military Academy, Military Morality, Character, Integrity”business philosophy. According to the “ Success once at a time, Advance and reliable, Customer satisfaction, Continuous improvement” quality policy, produce the military high standard products depend on the talent and technology advantages. By military character, do the man first and then work, and provide the high quality products and favorable service to the domestic and overseas clients. With the high quality products and favorable service, it has won the good reputation from clients and won the large market share. (The group users has more than 3000).

Management：

We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS, and ISO14001-2004 environment management system. It has not any batch quality problem since establishment. AQSIQ( State Quality Inspection Administration) take the spot checking of our electric meter during 2009-2016, and all the meter passed the inspection. Fully proved that the production is according to our quality management system, and the product quality is stable and reliable.

Oversea Market：

Quality product performance and good reputation, our products are not only successful sales in China, but also have been exported to more than 100 countries and regions in the world, including: Mongolia, Malaysia, Bangladesh, Germany, Italy, Russia, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.
