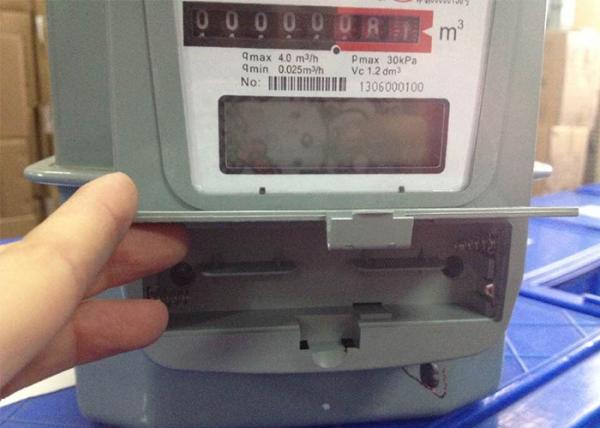

    Household Diaphragm Prepaid G2.5 / G4 / G1 6 Gas Meter Steel Case With IC Card

    Steel Case Household Diaphragm Prepaid Gas meter with IC Card G1.6/G2.5/G4


    General Description


    IC Card Household Diaphragm Gas Meter is applicable to metering urban pipeline gas, natural gas, liquefied petroleum gas, and other non-corrosive gas, etc.. Parameters of the gas meters accord with the requirements of <GB/T6968-2011 diagram gas meter>.

    Use the logic encryption card ( called IC card) as the information carrier. The data is read from the IC card and be exchanged by control module .And the meter information like gas volume and working status will be writen to the IC card and be feedbacked to the gas selling management system by IC card. When we use the gas , the control module will receive the signal from the collector and will make some measurement process to the gas volume information. When the Residual gas volume reach to 0, control module will send the order of closing the valve to stop the gas using until the customer purchase the gas again. This is the management of prepaid.

    Structural Features


    Consist of basic gas meter and electronic controller. Electronic controller consists of control module, signal collector and valve actuator.
    1. Steel Case, independent core with high sensitivity and accuracy, diaphragm type structure, advanced process, big character wheel, counting device.
    2. Prompt function When remaining gas or battery capacity is lower than the pre-set value, it will prompt consumer to purchase or replace the battery in time.
    3. Alarm The meter will detect and record the magnetic disturbance, non-metering, valve stoppage, low battery etc. automatically and there will be related alarm symbol displayed on LCD, all the events record could be transferred to master station through IC card.

    Main Technical Indicators


    Name of parametersUnitType
    1.62.54.0
    Maximum flow-rate Qmax
    m³/h
    2.546
    Minimum flow-rate Qmin
    m³/h
    0.0160.0250.04
    MaterialSteel case
    Basic error%Qmin ≤Q< Qt ±3
    Qt ≤Q ≤Qmax ±1.5
    Maximum working pressurekPa50
    Total pressure lossPa250
    Electrical conversion error≤±1 electrical conversion signal equivalent
    Quiescent work currentμA≤20
    Working temperatureºC-10~+45
    Name of parametersParametersRemarks
    Power and voltageDC6.0VAlkaline batteryAlkaline battery 1.5V*4
    Battery lifeAlkaline battery≥1 year
    Static working currentI≤20µALCD display
    Maximum working currentI≤80mA
    Data hold time≥10years
    Times of IC card insert and extract≥100000times
    Fault-free working times of actuator≥20000timescontinuous testing
    Electromechanical conversion erroran impulse equivalent0.1m3
