IC Card Prepaid Energy Meter Mono Phase Smart Prepayment Electric Meter Pulse Output

1. Introduction:

Traditional prepaid electric meter is normally working by the means of Multi-Card One Meter, electricity consumption measurement or No Card to deduct the purchased electricity (unit: kWh ) after being inserted into IC Card. However, the price fluctuation of electricity market which cannot reflect in the purchased electricity will increase the losses of Power Company.

For this purpose, a new designed prepaid electric meter Model No. DDSY150 D/F/A issued by Radarking adopts the electricity fee ( Unit: CNY) way, that is, when the fee is transmitted into through Client IC Card and the meter will deduct the price of electricity ( 0.1kWh as base ) according to the unit price, which is set on the IC Card to be transferred into the meter. When the electricity rate changes, the unit price of electricity in the meter will also be changed through the communication medium IC card that the modified unit price are written into from the vending system.

2. Main Technical Parameters:

3. Main Features:

Metering active electric energy, without the need of tuning for long-term work;

Active three-phase electric power metering, no subject to adjust in terms of long working;

Indicative function for phase loss or voltage indication;

The signal will display after it test;

Each user(meter) responds to a card, well protect from forgery;

Once the remanining electric power quality is approaching the alarming power quality, the digital tube should be lighted to remind user of timely purchasing;

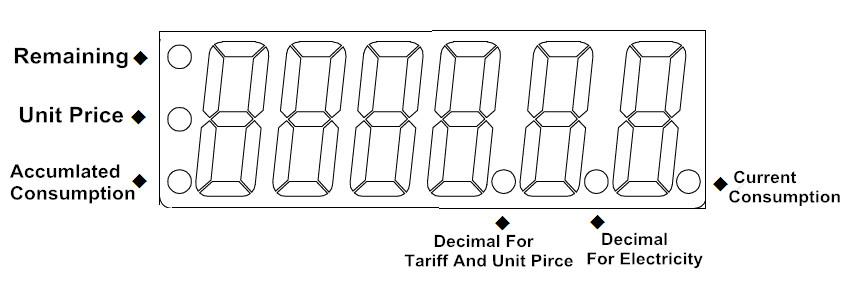

4. Display and Appreance:

Features

1. Product's Type-- One Card One Meter, Multi Cards One Meter, One Card Multi Meters, Special Load Identification.

2. Electric Power Measurement-- Positive active power and reverse active power which can be measured.

3. Prepayment-- IC Card prepaid, electricity sector receive energy charge in advance through selling IC Card. User pay first.
4. Ladder Billing-- Two schemes for electricity price. It can automatic changeover when at promissory time or reach certain value.
5. Manner of Working-- Warning/Overdraw Manner. Warming/Overdraw electricity, maximum accumulations can be set.
6. Protections-- Over Voltage, Over Current, Over Load Protections.
7. Display Method-- LED or LCD display the rest electricity(charge), cumulative electricity consumption, current power in alternant way.
8. Reliable Design-- Perfect power source and electromagnetism compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.
9. Cover for Meter-- Fully sealed dustproof and waterproof design, material of cover has excellent flame retardant and anti-corrosion, anti-aging properties.
10. Interface Protection-- Perfect interface protection circuit, which keeps the meter from all kinds of vicious attack, no damaging for meter, no lose for data, and no delay for active.
11. Communication Mode-- Infrared, RS485 interface or carrier communication module (Optional).
12. Power Supply System-- Three-phase power supply or it can work while just one phase has electricity if three phase four wires.

Introduction：

Wuhan Radarking Electronics Corp. is a modern share enterprises which focusing on the smart Internet of things(IOT) /smart grid energy consumption sensor/intelligent electric safety integrated solution. It established in 2002（former name: Wuhan Radarking Co.,Ltd.）and went public on January 27, 2015 with the stock abbreviation RADARKING and stock number 831722. It owns the independent R&D center and factory which is the key recommended high-tech enterprises in Wuhan city, Hubei Province.

It mainly R&D, manufacture and sell the integrated solution of smart Internet of things(IOT) energy consumption sensor/smart grid energy consumption sensor/energy consumption information acquisition and transmission(Collector, Concentrator, Communication Module), smart electric meter, smart water meter, “RDK” energy Internet of Things(IOT) intelligent energy safety integrated solution, digital campus energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter/All-in-One Card cloud computing total charging management integrated solution, energy consumption monitoring and analysis integrated solution, mobile phone APP(Energy Consumption, Fast E Top Up).

Principle:

It pursues “Military Academy, Military Morality, Character, Integrity”business philosophy. According to the “ Success once at a time, Advance and reliable, Customer satisfaction, Continuous improvement” quality policy, produce the military high standard products depend on the talent and technology advantages. By military character, do the man first and then work, and provide the high quality products and favorable service to the domestic and overseas clients. With the high quality products and favorable service, it has won the good reputation from clients and won the large market share. (The group users has more than 3000).

Management：

We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS, and ISO14001-2004 environment management system. It has not any batch quality problem since establishment. AQSIQ( State Quality Inspection Administration) take the spot checking of our electric meter during 2009-2016, and all the meter passed the inspection. Fully proved that the production is according to our quality management system, and the product quality is stable and reliable.

Oversea Market：

Quality product performance and good reputation, our products are not only successful sales in China, but also have been exported to more than 100 countries and regions in the world, including: Mongolia, Malaysia, Bangladesh, Germany, Italy, Russia, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.
