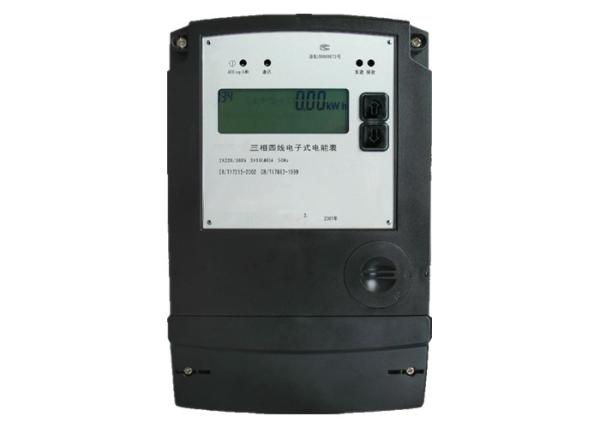

3 Phase Electricity Meter DTS150 , Industrial Electric Meter With Real Time Measurement

Product brief Introduction

DTS150 type three-phase electronic multi-function watt-hour meter is a new type of multi-function meter ; it accords with the correlative standard , rules of the nation It has the function as high-accuracy , well stability , advanced technology and easy operation. The performance index of the meter accords with the technical requirements of nation standard,such as IEC 62053-21 Class 1 and 2 Static AC Active watt-hour Meter, IEC 62053-22 Class 0.2S and 0.5S Static AC Reactive watt-hour Meter , IEC 62053-23 Class 2 and 3 StaticAC Reactive watt-hourMeterand DL/T614-1997 Multi-function Watt-hourMeter, the
communication agreement accords with DL/T645-1997.

Function and features:

• Measure forward direction , reverse direction and 4 quadrants reactive power and max demand , the time of max demand occurs
• Split phase power measuring
• 4 rates , 4 time zones , 6 sets of time periods , 10 time periods per day, 12public
• holidays
• Record undervoltage , undercurrent
• Data of 3 period cycles can be congeal auto and record data of 12 months
• The active forward & reverse direction and the reactive 4 quadrants output via pulse
• The pulse width can be setup by controller or RS485
• The infrared controller will display the item
• The line are communication and the infrared wireless communication accords with DL/T - 645 - 1997
• It can be mounted the meter key stoke-display or circular-display when power is off Maximum 25 items can be set up to be displayed.
• Recording events (like data clearances of accumulative power and demand power)
• Meter reading function at power off
• Recording the load
• It is easier for electric department centralized management
• Overload alarming function
• Transformer magnification can be setup
• All the data and information can be displayed via LCD
• Measuring the voltage , current , power of the three phases (Phase A,Phase B and Phase C) any time
• It has the recording feature of undervoltage , undercurrent , overpower, power off/on , deleting the database, programming ,adjusting the time and so on
• It has the functions of program frohibition and demand replacement
• Power break awakening function
• Two sets of battery , one ( 3.6V ) is used for keeping data , and the other set of two batteries ( 6V ) is used for copying, They are easier to change

Main technical data
