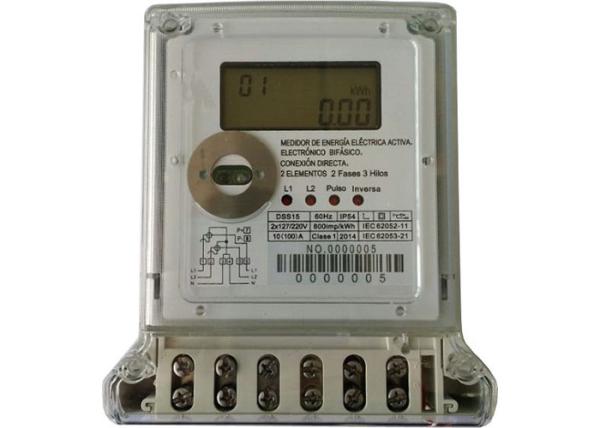

Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter

    Buy cheap Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter from wholesalers

    Buy cheap Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter from wholesalers
    • Buy cheap Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter from wholesalers

    Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter

    Ask Lasest Price
    Brand Name : Radarking
    Model Number : DSS150
    Certification : IEC62053-21; IEC62052-11; IEC62053-23;
    Price : Negotiate
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 5000000 pcs per year
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter

    Anti Tamper Digital Power Meter Two Phase Three Wires Electric Watt Hour Meter


    Main Features
    1. Low self-consumption, small volume, light weight
    2. Meeting standard IEC62052-11 and IEC62053-21 on" Alternating current static watt-hour meters for active energy (classes 1 and 2)"
    3. Under normal conditions, the life of displayer(counterLED or LCD can be selected) is more than 10 years.

    TECHNICAL PARAMETERS:


    Electrical parameters:
    Voltage
    Nominal voltage Un120/240V
    Extended operating voltage range80%~115%Un
    Limited voltage70%~120%Un
    Frequency
    Nominal frequency fn60Hz
    tolerance5%
    Current
    Basic current(Ib)10A
    Maximum current(Imax)100A
    Starting current(Ist)30mA
    Active energy constant400imp/kWh
    Measurement Accuracy
    Active energy to IEC6205321Class1.0
    Reactive energy to IEC6205323Class2.0
    Power Consumption
    Power consumption in Voltage circuit<2W <8VA
    Power consumption in current circuit<1VA
    Temperature range
    Operation meter25ºC to+70ºC
    Storage40ºC to+85ºC
    Insulation strength
    AC Insulation strength4kV at 50Hz during 1min
    Impulse voltage 1.2/50μs mains connections8kV
    Electro Magnetic Compatibility
    Electrostatic discharges
    Contact discharge8kV
    Air discharge16kV
    Electromagnetic RF fields
    27MHz to 500MHz typical10V/m
    100kHz to 1GHz typical30V/m
    Fast transient burst test4kV
    Mechanical requirements
    Meter shell Protection RateIP54
    ProtectionclassII

    Terminal Connection


    Wuhan Radarking Electronics Corp. is a modern share enterprises which focusing on the smart Internet of things(IOT) /smart grid energy consumption sensor/intelligent electric safety integrated solution. It established in 2002(former name: Wuhan Radarking Co.,Ltd.)and went public on January 27, 2015 with the stock abbreviation RADARKING and stock number 831722. It owns the independent R&D center and factory which is the key recommended high-tech enterprises in Wuhan city.


    It mainly R&D, manufacture and sell the integrated solution of smart Internet of things(IOT) energy consumption sensor/smart grid energy consumption sensor/energy consumption information acquisition and transmission(Collector, Concentrator, Communication Module), smart electric meter, smart water meter, “RDK” energy Internet of Things(IOT) intelligent energy safety integrated solution, digital campus energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter/All-in-One Card cloud computing total charging management integrated solution, energy consumption monitoring and analysis integrated solution, mobile phone APP(Energy Consumption, Fast E Top Up).
