    Smart Customized Multifunction Single Phase Fee Control Electric Energy Meter

    Ask Lasest Price
    Brand Name : Radarking
    Model Number : DDZY150
    Certification : IS09001; IS014001; IEC62052-11; IEC62053-21; IEC62056
    Price : Negotiate
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 6000000 pcs/year
    Delivery Time : 20-40 working days
    • Product Details
    • Company Profile

    Smart Customized Multifunction Single Phase Fee Control Electric Energy Meter

    Smart Customized Multifunction Single Phase Fee Control Electric Energy Meter


    Main Features

    • Energy Measurement

    Total and time-sharing forward active & reactive energy measurement
    Total and time-sharing reverse active & reactive energy measurement
    Total forward & reverse apparent energy measurement
    Save last one to sixteen months energy data

    • Max. Demand Measurement

    Measure total and time-sharing forward active & reactive maximum demand and time of occurred
    Measure total and time-sharing reverse active & reactive maximum demand and time of occurred
    Measure total forward & reverse apparent maximum demand and time of occurred

    • Real Time Measurement

    Real-time measurement of the phase voltage, current, total active power, reactive power, apparent power, total power factor, power grid frequency

    • TOU

    4tariffs, 100holidays, 14seasontables, 8time zonetables and each table on maximum 14 time zones

    • Event Log

    The last 10 records of following events:Power-down, Programing, Cover opening, Terminal cover opening, Reverse power. the records include data and time

    • Load profile

    Atleast 4 loadprofile channels,Record at least 490days data when time interval is 30 minutes

    • Optical port interface

    Communication standards DL/T645-2007, 1200bps for communication
    Support IEC62056(DLMS/COSEM) protocol

    • RS-485 serial interface

    Communication standards DL/T645-2007, 2400bps for communication
    Support IEC62056(DLMS/COSEM) protocol

    • LCD display

    Number of digits value field Up to 8
    Digit size 4x10mm

    • Inputs and outputs

    Optical test outputs active energy and reactive energy

    • Communication modules(optional)

    GPRS module:EGSM900/DCS1800 dual-band,support GSM/GPRS phase2/2+ protocol
    PLC module: according to Technology Standards of SSC163X ,center frequency 270K, FSK modulate technolgy

    Technical parameters:

    Electrical parameters:
    Voltage
    Nominal voltage Un230V
    Extended operating voltage range80%~115%Un
    Limited voltage70%~120%Un
    Frequency
    Nominal frequency fn60Hz
    tolerance5%
    Current
    Basic current(Ib)10A
    Maximum current(Imax)100A
    Starting current(Ist)30mA
    Active energy constant1000imp/kWh
    Measurement Accuracy
    Active energy to IEC6205321Class1.0
    Reactive energy to IEC6205323Class2.0
    Power Consumption
    Power consumption in Voltage circuit<2W <8VA
    Power consumption in current circuit<1VA
    Temperature range
    Operation meter25ºC to+70ºC
    Storage40ºC to+85ºC
    Insulation strength
    AC Insulation strength4kV at 50Hz during 1min
    Impulse voltage 1.2/50 μs mains connections8kV
    Electro Magnetic Compatibility
    Electrostatic discharges
    Contact discharge8kV
    Air discharge16kV
    Electromagnetic RFfields
    27MHz to 500MHz typical10V/m
    100kHz to 1GHz typical30V/m
    Fast transient burst test4kV
    Mechanical requirements
    Meter shell Protection RateIP54
    ProtectionclassII

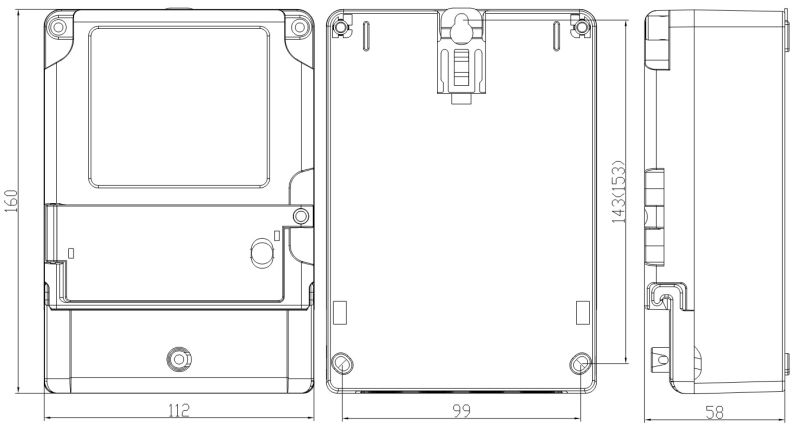

    Installation Dimension Figure
    Dimension
