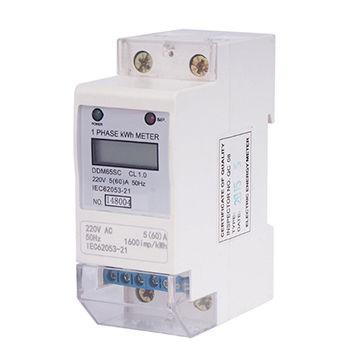

60Hz Small Size Single Phase Energy Meter SMT Technology High Accuracy

Modular DIN Rail Products offer a wide range of functions to be integrated into electrical installations with significant benefits for the user, we have a complete range of DIN-mounted electricity meters together with communication options.

It is designed for high-level performance and is safe and fast to install.

The meters are available in several configurations to suit many applications, with the increasing energy cost, measuring the electricity consumption is getting more and more important, If you can identify where you have used you are one step closer to reducing your energy cost, now start to make energy usage smarter.

Features

• Meter case: ABS + PC anti-flaming, environment-friendly material
• Display: LCD display 6+1digits
• Standard configuration pulse output passive (polarity).
• Forward active energy and reverse active energy measurement
• Directly connect operation, Maximum 80A ( standard )
• Approved by international standard IEC62052-11, IEC62053-21

Optional functions

• Communicate RS485 Modbus RTU protocol, baud rate: 1200~9600bps
• Voltage (V)
• Current (A)
• Frequency (Hz)
• Power (KW)
• Power factor (COS)

Technical parameters

• Accuracy: Class 1.0
• Rated voltage: AC 110V, 220V, 230V, 240V
• Voltage range: 0.8～1.2Un
• Rated current: 5(30)A, 10(40)A, 15(60)A, 20(80)A
• Operation current range: 0.05Ib～Imax
• Starting current: 0.4%Ib
• Rated frequency: 50Hz or 60 Hz
• Power consumption: 2W / 10VA.
• Impulse constant: 1600imp/kWh
• Relatively humidity: ≤85%
• Operation temperature:-10℃～+60℃
• Installation capacities: AC voltage withstand 2kV for 1 minute
• Impulse voltage withstands 4kV - 1.2/50μs waveform.
