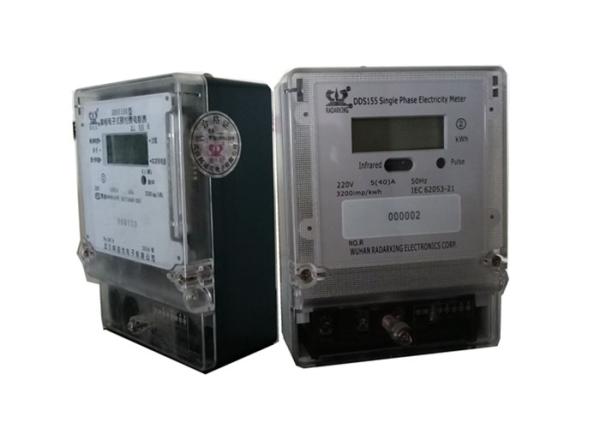

Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage

    Buy cheap Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage from wholesalers

    Buy cheap Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage from wholesalers
    • Buy cheap Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage from wholesalers

    Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage

    Ask Lasest Price
    Brand Name : Radarking
    Model Number : DDS155
    Certification : IEC 62053-21:2003
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 5000000 pcs per year
    Delivery Time : 5-35 Days
    • Product Details
    • Company Profile

    Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage


    Anti Theft LCD Digital Kwh Meter Single Phase Fully Sealed 230 Voltage

    Description:


    Single phase electric meter is a digital intelligent metering, The cover of the meter is fully sealed dustproof and waterproof design, material of cover has excellent flame retardant and anti-corrosion, anti-aging properties.


    Specification:

    VoltageRated220V/230V
    Range0.34Un~1.15Un
    Limit0.34Un~1.2Un
    CurrentRated10A
    Max60A
    Frequency50Hz
    Active EnergyClass 1.0
    Staring Current0.4%Ib
    Active Impulse1600
    Power LossVoltage Circuit≤1.5W,10VA
    Current Circuit≤1VA
    Working Temperature-25ºC~+60ºC
    Limit Working Temperature-40ºC~+80ºC
    Humidity≤95%
    DisplayTypeLCD
    Digit6+2
    Display Page5(with electric);1(without electric)
    Dimension
    Weight

    Features:
    1. Measuring both forward and reverse active energy, absolute measurement for reverse energy
    2. Demand measurable
    3. LCD display even when power is off
    4. Tamper and fraud detection
    5. Alarm function
    6. Communication Mode: Infrared, RS485 interface or carrier communication module(Optional).
    7. Reliable Design: Perfect power source and electromagnetism compatible design.
    8. Intelligent Design: Imported single-chip which controlled by microcomputer, full digital metering, with advantages of high accuracy, good linearity, wide range, low consumption and prevent from electricity stolen.


    What can we do for you?
    1) We offer samples.
    2) Competitive Price( Factory direct price) .
    3) On time delivery.
    4) Good customers service.
    5) Professional Technology.
    6) Quality Control through the whole Manufacturing process.
    a. Check the material before the production.
    b. Have the random inspection during the production.
    c. Make the 100% inspection before the shipment.
